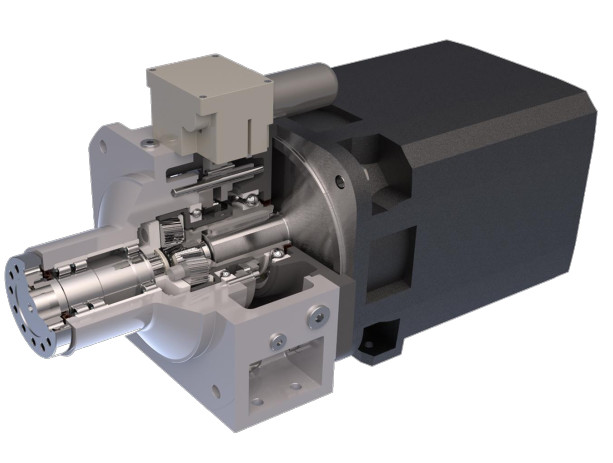

Baruffaldi, with over than 30 years experience, is a merket leader in production of 2-Speed Planetary Gearboxes.
Two speed gearboxes are commonly used on machine tools main spindles, (turning lathes, Milling machines, Boring machines etc..) together with variable speed motors, aiming to extend constant power field offered by the motor and to increase torque at low speeds.
By using Baruffaldi two speed gearboxes, production flexibility of the machine is increased without affecting precision: high torque is available for hard materials machining and high speed for soft materials.

Каталог — CE серия Подробнее... Руководство по работе и обслуживанию коробки передач Подробнее...

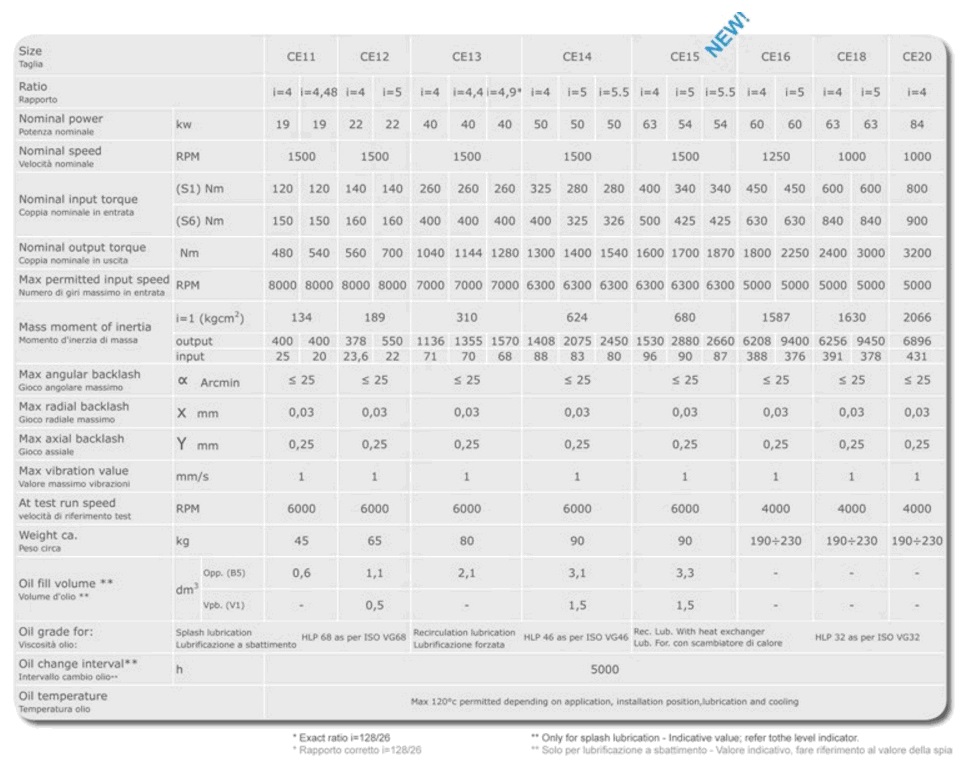

Main Charateristics:
  • 8 Gearboxes sizes
  • Output torque u to 3200Nm
  • Input Speed up to 10.000 giri
  • Suitable with any kind of motor thanks to the modular input system
  • High belt tension allowed due to gearbox high rigidity
  • Low vibration, temperature and noise levels thanks to an innovative system
  • Lubrication system to be defined according to the application
