Револьверная головка Baruffaldi с сервоприводом — TAB серия

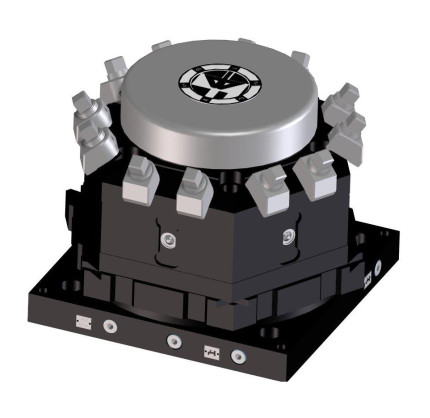

TAB is a vertical axis turret with bi-directional positioning, no body lifting during the indexing rotation, really simple design, really high performances and request a minimum maintenance.
They use a fully hydraulic locking system and rotate thanks to a BRUSHLESS SERVO MOTOR controlled by a SERVO DRIVE.
Turrets can carry 4/6 tool holders as per DIN 3425 norms; on demand, they can be supplied with a different number of faces or special body.
TAB turrets can be mounted with the axis in horizontal, slanting position.

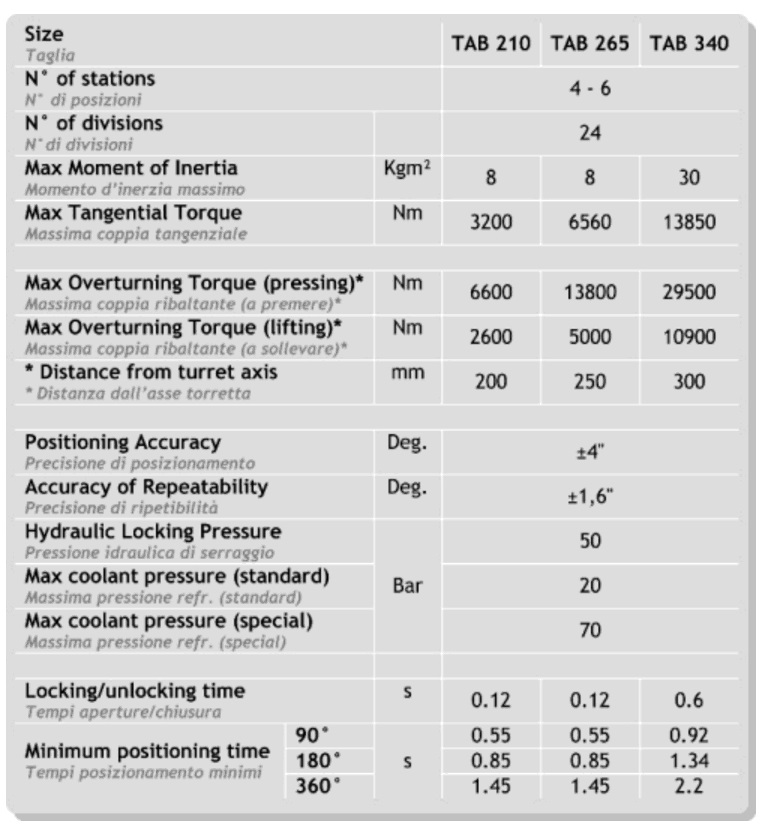

Main Characteristics:
- Very high rotation speed with minimum indexing times
- Bi-directional
- Locking and Unlocking without body lifting
- Double sensor for locking and unlocking status
- High rigidity due to the new design
- Possibility to use turret body with 4 or 6 positions.
- Possibility to lock the turret in intermediate positions (24 divisions)
- Coolant output flow through valve on the body side
- Possibility, upon request, to increase the coolant pressure up to 70 bar
